Dual Plate Check Valve

You are here: Home » Products

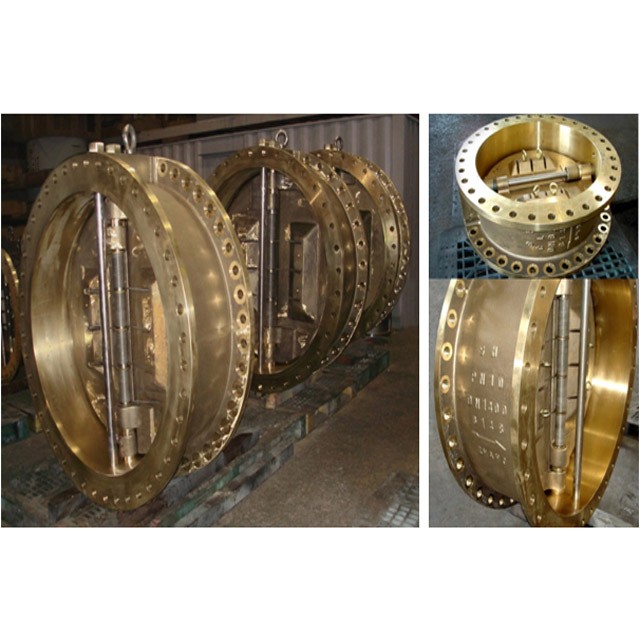

Dual Plate Check Valve

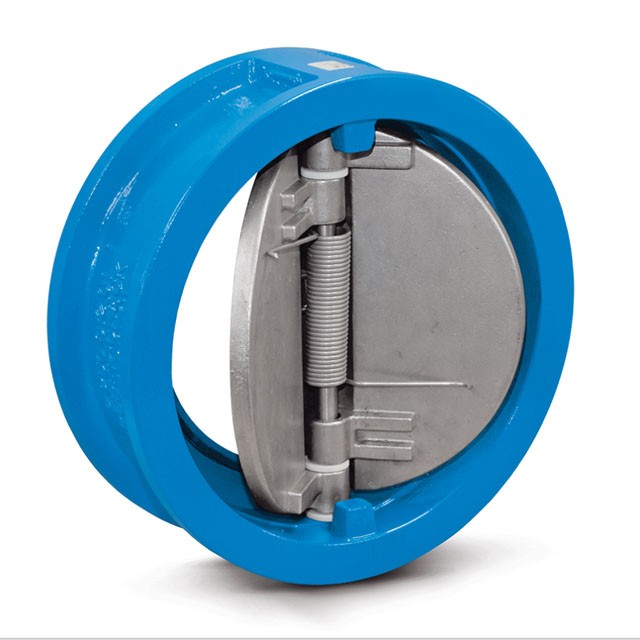

dual-plate check valves are wafer-type valves with a short overall length. Their excellent hydrodynamic properties result in very low pressure losses. Their lower weight brings advantages during installation, transport and storage.
They are suitable for liquid, gas and steam in heating, air conditioning and cooling systems. However, they can also be used in steam and condensate systems, in the water supply, and in oil and natural gas pipes.
With the suitable springs, they can be installed in any position.
E-mail Us  PDF Download
【Prev Products】 【Next Products】

Key design features of our API 594 Dual Plate Check Valves include:

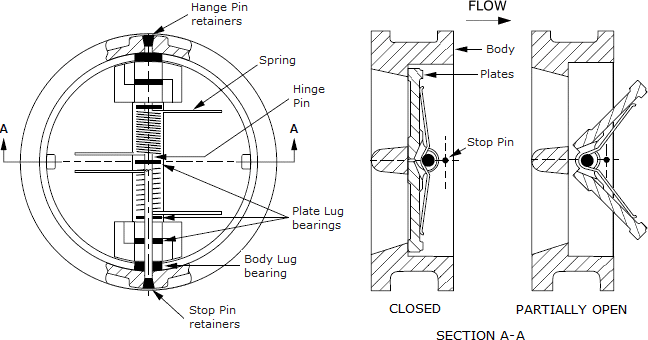

  • Retainerless body design with no external body penetrations eliminating the possibility of outside leakage. Disc assembly secured in place by high strength key.
  • End gasket surfaces are uninterrupted with no screws or lock pins breaking the gasket surface. No gasket restrictions required.
  • Seat faces lapped for smooth finish and superior sealing.
  • High torsion inconel springs for quick closing.
  • Each valve is shell and seat pressure tested per industry standard API 598.

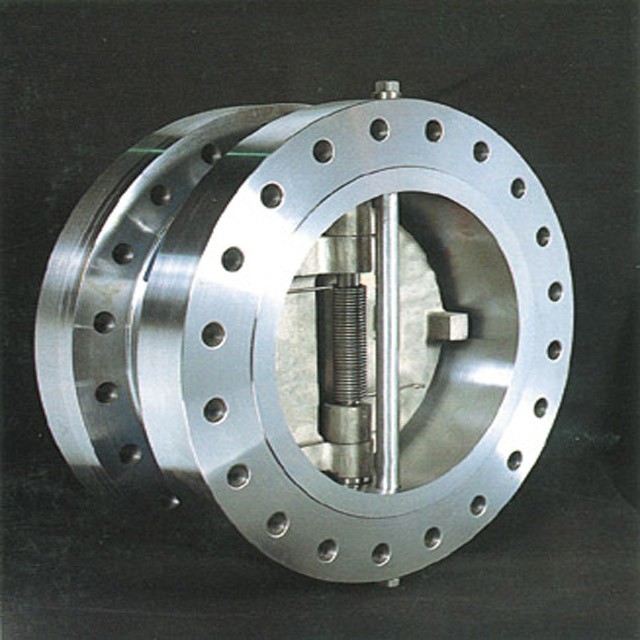

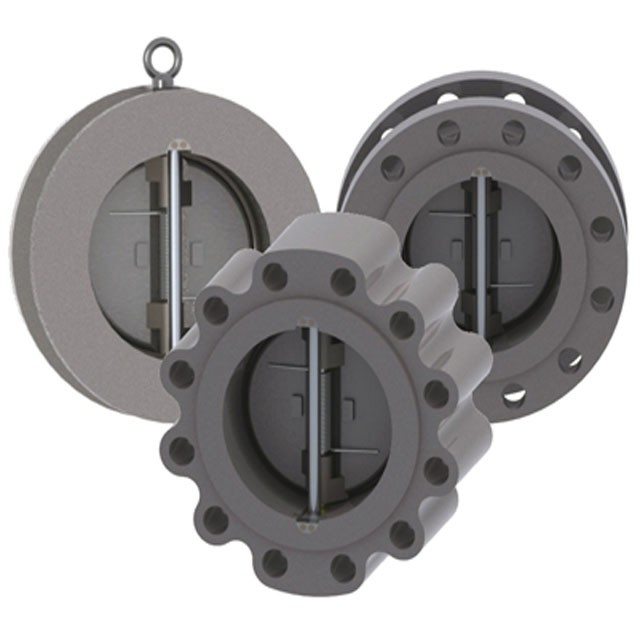

  • Available in Wafer, Lug and Double Flange styles.
  • Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test report, and inspection report.
