API 600 Gate Valve

You are here: Home » Products

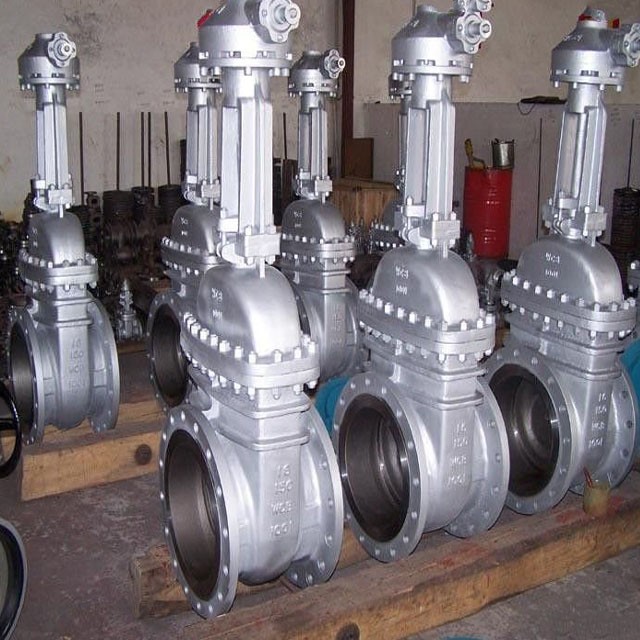

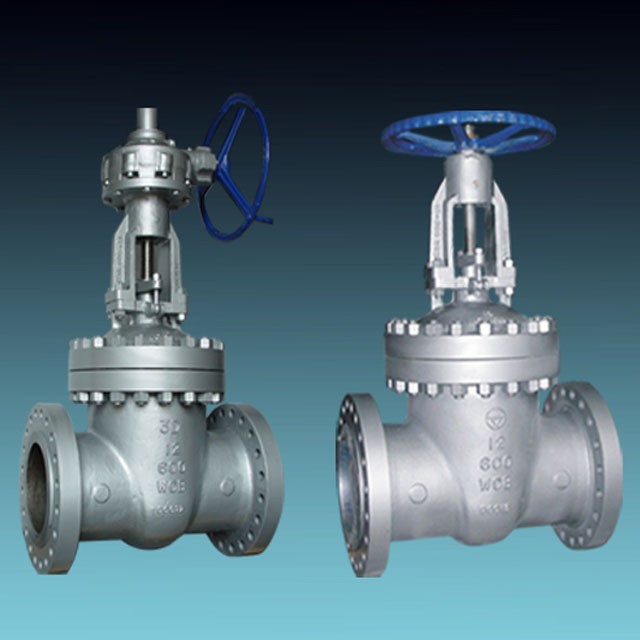

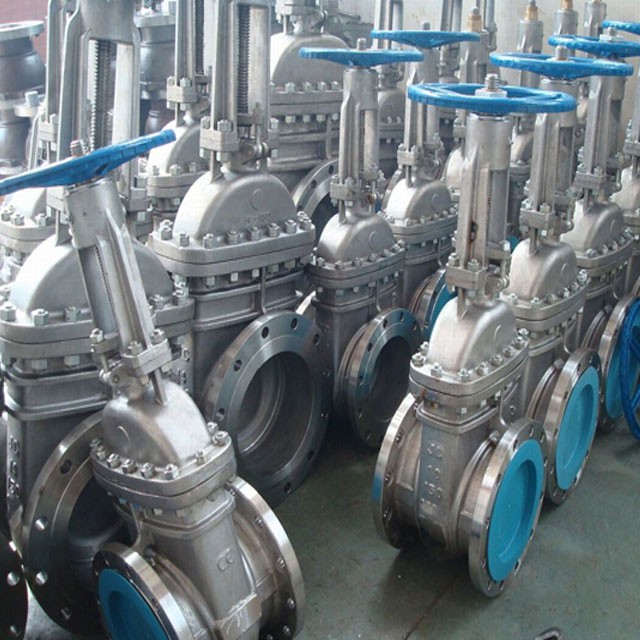

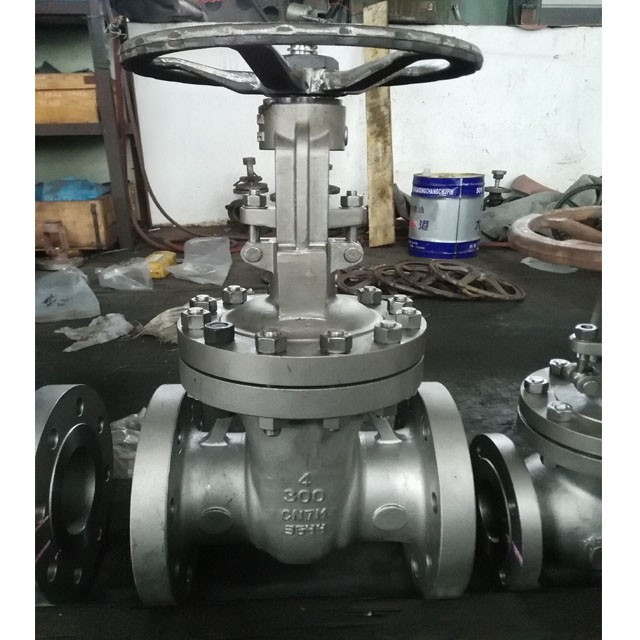

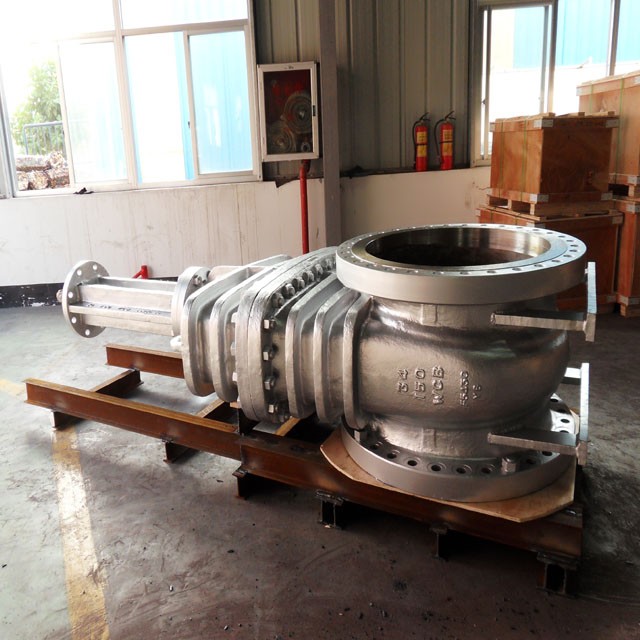

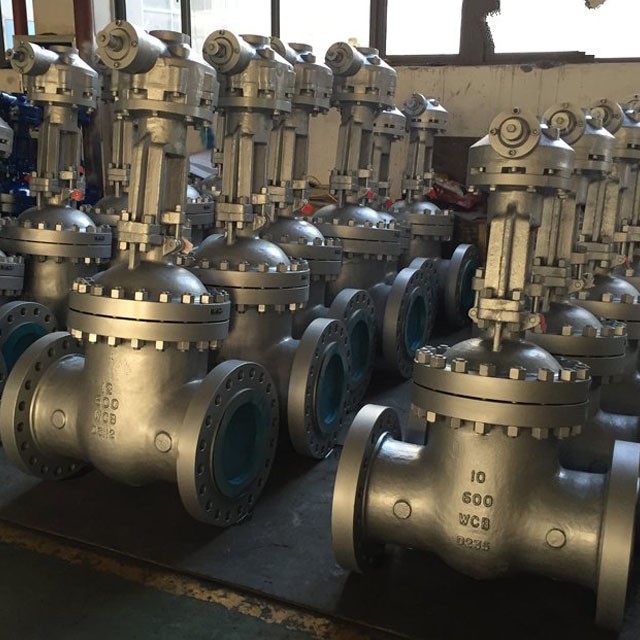

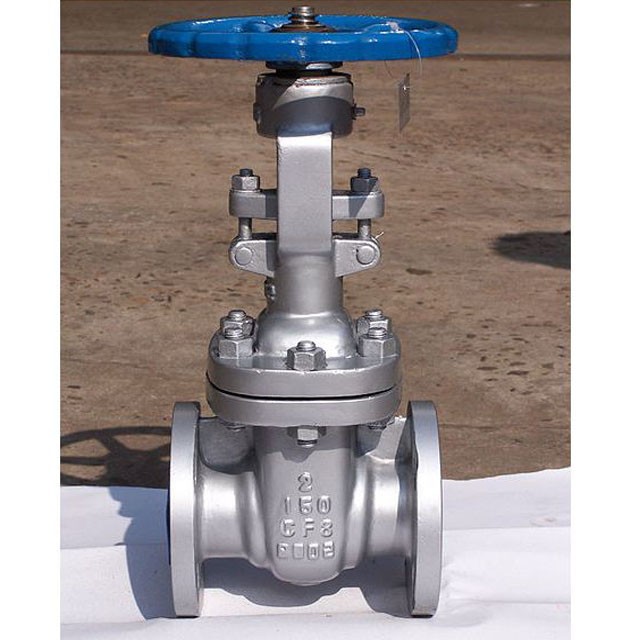

API 600 Gate Valve

Gate valve is usually divided into several types by seal part mode, such as: wedge gate valve, plate gate valve, parallel 2-flashboard gate valve, wedge 2-flashboard gate valve. Gate valve is usually for working condition in which the valve is not opened or closed frequently, and supports flashboard fully open or fully closed. It's not suitable for adjustment or throttling. Different materials may be selected for transportation of water, steam, oil, natural gas, nitric acid, acetic acid, oxidant and urea.
E-mail Us  PDF Download
【Prev Products】 【Next Products】

Product design and scope

Design standard:API 600

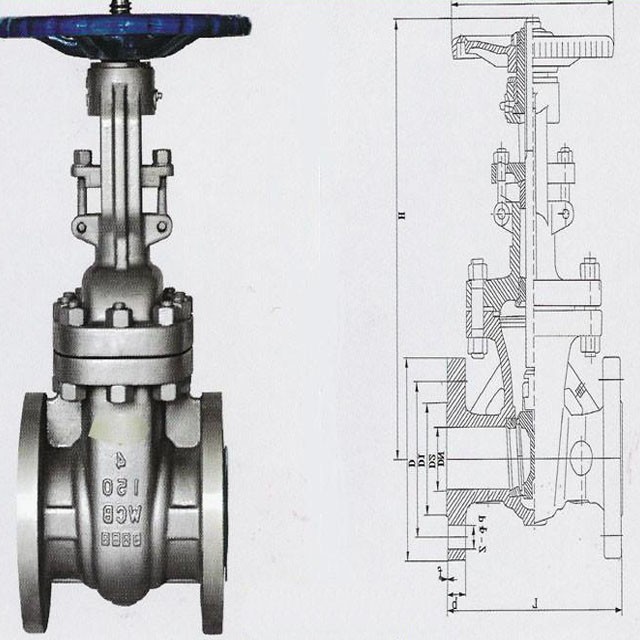

Length of structure:ASME B16.10

Flange connecting end:ASME B16.5/ASME B16.47

Butt welding connecting end:ASME B16.25

Wall thickness:API 600/ASME B16.34

Inspection and test:API 598

Pressure and temperature rating:ASME B16.34

Product scope:NPS 2″~NPS 56″,CL150~CL2500

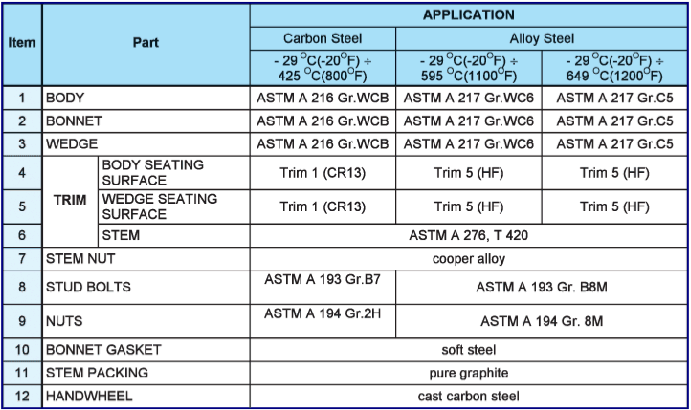

Main body material:WCB、LCB、WCC、WC6、WC9、CF8、CF8M、CF3、CF3M、A890 4A etc.
